Name: 5vdc 16a-250vac relais, 1 schliesser
SKU: X683093
Price: 14.43 EUR
Availability: InStock

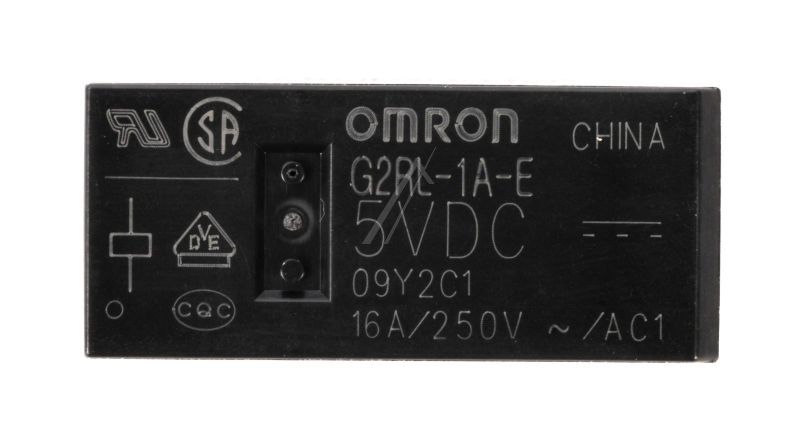

5vdc 16a-250vac relais, 1 schliesser

€ 17,32

Artikelnummer: X683093

lieferbar innerhalb von 3 Tagen

Zusätzliche Informationen

Technische Daten

Spulenspannung:	5 V
Spulenerregung:	DC
Kontaktform:	1 Schließer / 1 NO / 1 Form A / SPST-NO
Max. Dauerstrom bei AC:	16 A
Max. Dauerstrom bei DC:	16 A

(Nenn-)Schaltspannung AC:	250 V
(Nenn-)Schaltspannung DC:	24 V
Spulenstrom:	80 mA
Spulenwiderstand:	62 Ω
Anzahl Pins:	6

Länge:	29 mm
Breite:	12,7 mm
Höhe:	15,7 mm
